ARRI cforce Gear Cases & Gridfinity Storage Bins

Modular Gridfinity storage cases and bins for cineAKS ARRI cforce Mini and CLM-5 lens gears.

Keep your cforce gears organised, protected and ready for fast changes with purpose-designed Gridfinity storage options. The range includes empty Gridfinity cases and storage bins, plus dedicated bins sized specifically for cineAKS cforce gears.

Available for both direct-fit and push-on cforce gears, with sizes matched to the gear diameter and multiplier shown in the compatibility chart.

Available storage options

Empty Gridfinity cases and bins

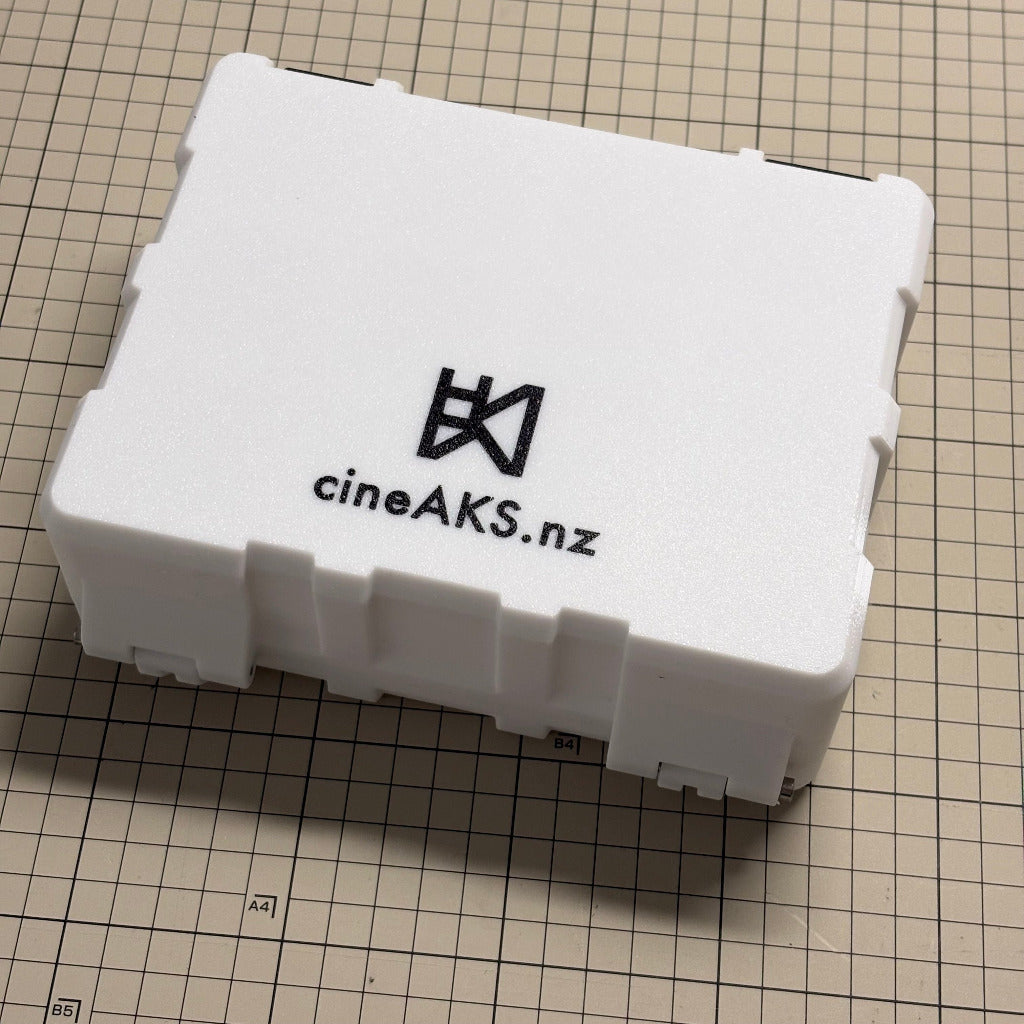

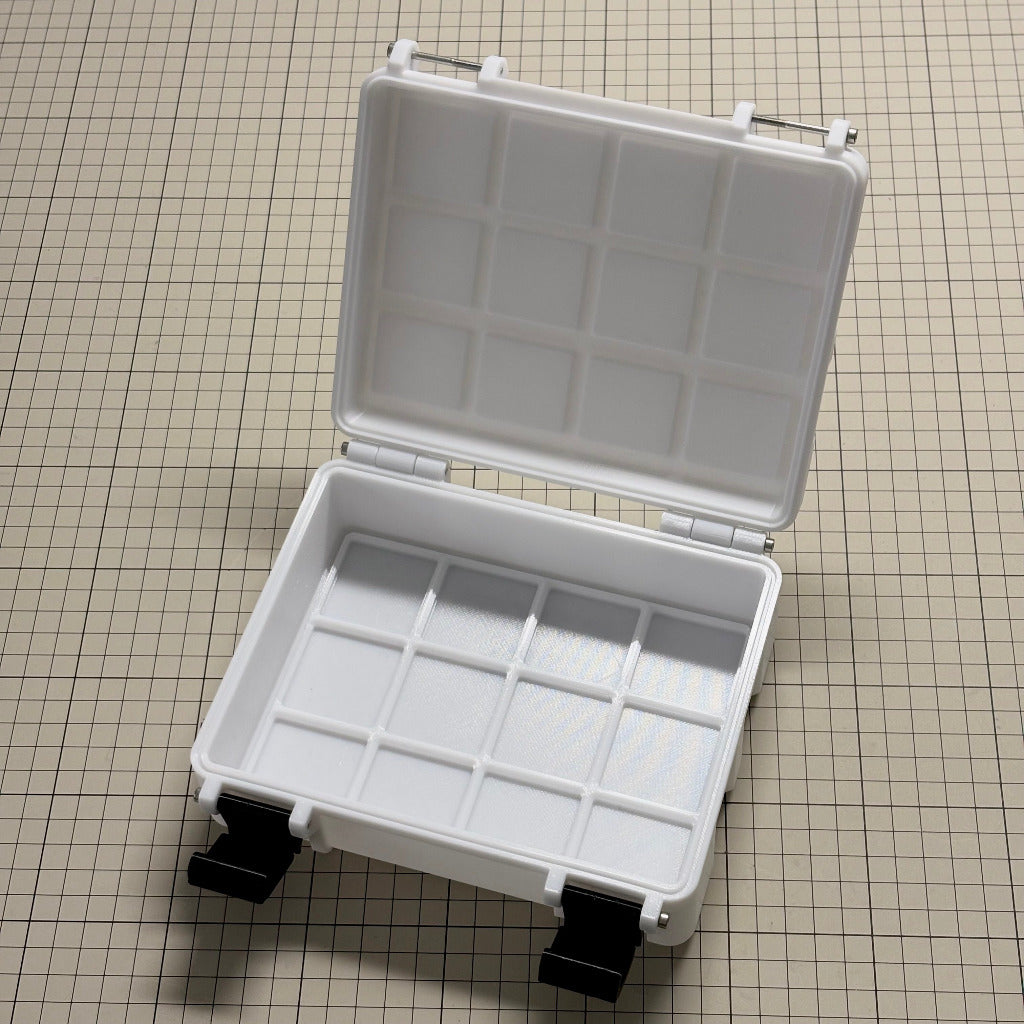

• Empty Case - 3 x 4 x 8 Gridfinity units
• Empty Storage Bin - 2 x 3 x 4 Gridfinity units
• Empty Storage Bin - 1 x 2 x 4 Gridfinity units
• Empty Storage Bin - 1 x 1 x 4 Gridfinity units

These provide general-purpose modular storage for cforce gears, screws, accessories and other small camera department items.

cineAKS cforce gear bins

• 2 x 3 x 8 Gridfinity - 2 x 1.5x-size Extra Offset gears
• 2 x 3 x 4 Gridfinity - 2 x 1.5x-size gears
• 2 x 2 x 4 Gridfinity - 1 x 2x-size gear
• 1 x 1 x 8 Gridfinity - 1 x 1x-size 25mm-wide gear
• 1 x 1 x 4 Gridfinity - 1 x 1.25x-size gear
• 1 x 1 x 4 Gridfinity - 1 x 1x-size gear

Gear-bin compatibility is based on the gear outside diameter and multiplier sizes shown in the compatibility chart in the product images.

The dedicated bins are designed to accommodate both direct-fit and push-on versions of the corresponding cineAKS cforce gears.

What is Gridfinity?

Gridfinity is an open-source, modular storage system based around a standardised grid of stackable bins and containers.

The system uses a 42mm x 42mm XY grid, with vertical sizing based on 7mm height units. This allows different bins, trays and cases to be combined into a common modular storage system.

Because the system is open and universal, Gridfinity containers can be mixed and matched rather than being tied to a single manufacturer or storage box.

For a brief overview of the system, see the Gridfinity Wikipedia article.

Stackable, modular and universal

The main advantage of Gridfinity is that individual storage bins do not need to be designed as a complete case.

Bins can be combined into larger Gridfinity layouts, rearranged as your lens package changes, and stacked with compatible Gridfinity storage.

That makes the system particularly useful for camera departments where gear packages change regularly.

Use individual bins for a small kit, combine multiple bins into a larger storage layout, or build a dedicated Gridfinity case around your cforce gear collection.

Designed for cineAKS cforce gears

The dedicated cineAKS bins are sized around the outside diameters of the cforce gear range rather than simply the nominal tooth count.

This means the appropriate storage bin can be selected according to the gear multiplier and physical diameter, including:

• 1x gears
• 1.25x gears
• 1.5x gears
• 2x gears
• 1.5x Extra Offset gears
• 25mm-wide 1x gears

Refer to the compatibility chart in the product images when selecting a bin.

Store gears with the replacement screw installed

The dedicated gear bins are deliberately deep enough to allow cineAKS cforce gears to be stored with the cineAKS replacement mounting screw installed.

This means gears can stay assembled and ready to install rather than requiring the screw to be removed and stored separately.

For camera assistants and operators working through a lens package, this can make gear changes considerably faster and reduces the number of loose small parts in the kit.

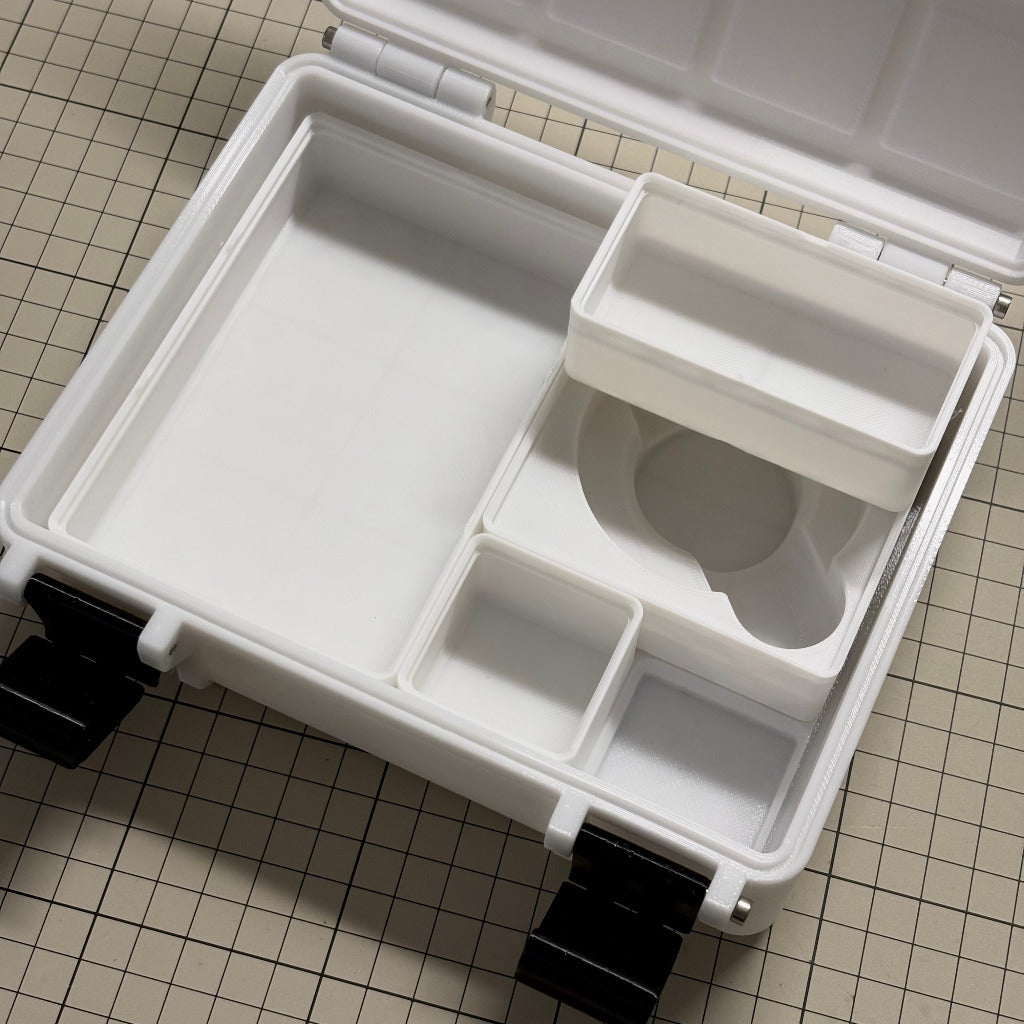

Build a complete cforce gear storage system

A Gridfinity-based storage system works particularly well with a comprehensive cforce gear package.

Keep standard direct-fit gears, offset gears, push-on gears and different lens pitches organised in dedicated bins, while retaining a common modular storage format across the whole kit.

The same system can also be used for other small camera accessories, tools, screws and components.

Custom Gridfinity bins

Need a different combination of dimensions or a dedicated bin for another cineAKS product?

Custom Gridfinity bins can be made on request.

Contact cineAKS to discuss custom dimensions, gear combinations or other storage requirements.

Compatibility

These storage bins are designed around the cineAKS cforce gear range for ARRI cforce Mini and CLM-5 applications.

The bins accommodate:

• cineAKS direct-fit cforce gears
• cineAKS direct-fit extra-offset cforce gears
• cineAKS push-on cforce gears

Select the bin based on the gear's physical outside diameter and multiplier shown in the compatibility chart.

For gears not covered by the standard bins, custom Gridfinity storage may be available on request.
