cineAKS Arri cForce Gear Kits

Comprehensive cineAKS cforce lens control gear kits for Arri cForce FIZ motors.

Choose from the Starter Kit, Offset Kit, or complete Master Collection. Each kit is available in three configurations:

• Gears only
• Gears + Gridfinity bins
• Gears + Gridfinity bins + Gridfinity case

The cForce range covers common M0.8, M0.6, M0.5 and M0.4 / 64p lens gear pitches, with direct-fit, push-on, offset, extra-offset and flush configurations. The range includes gearing for ARRI, Panavision, Canon and Fujinon applications.

Starter Kit - 10 gears

The Starter Kit is a general-purpose collection covering a broad range of common FIZ lens-control requirements.

It combines direct-fit gears with push-on configurations, including Panavision-compatible M0.4 / 64p gearing.

Gears included

• M0.8 40T to M0.8 60T push-on offset
• M0.8 40T to M0.4 / 64p 120T Panavision push-on offset
• M0.8 40T to M0.8 80T push-on offset
• M0.8 40T to M0.4 / 64p 160T Panavision push-on offset
• M0.8 40T to M0.4 / 64p 100T Panavision push-on flush
• M0.8 80T direct-fit, 8mm offset
• M0.8 40T, 25mm direct-fit
• M0.6 54T direct-fit
• M0.5 64T direct-fit
• M0.4 80T direct-fit

10 gears total.

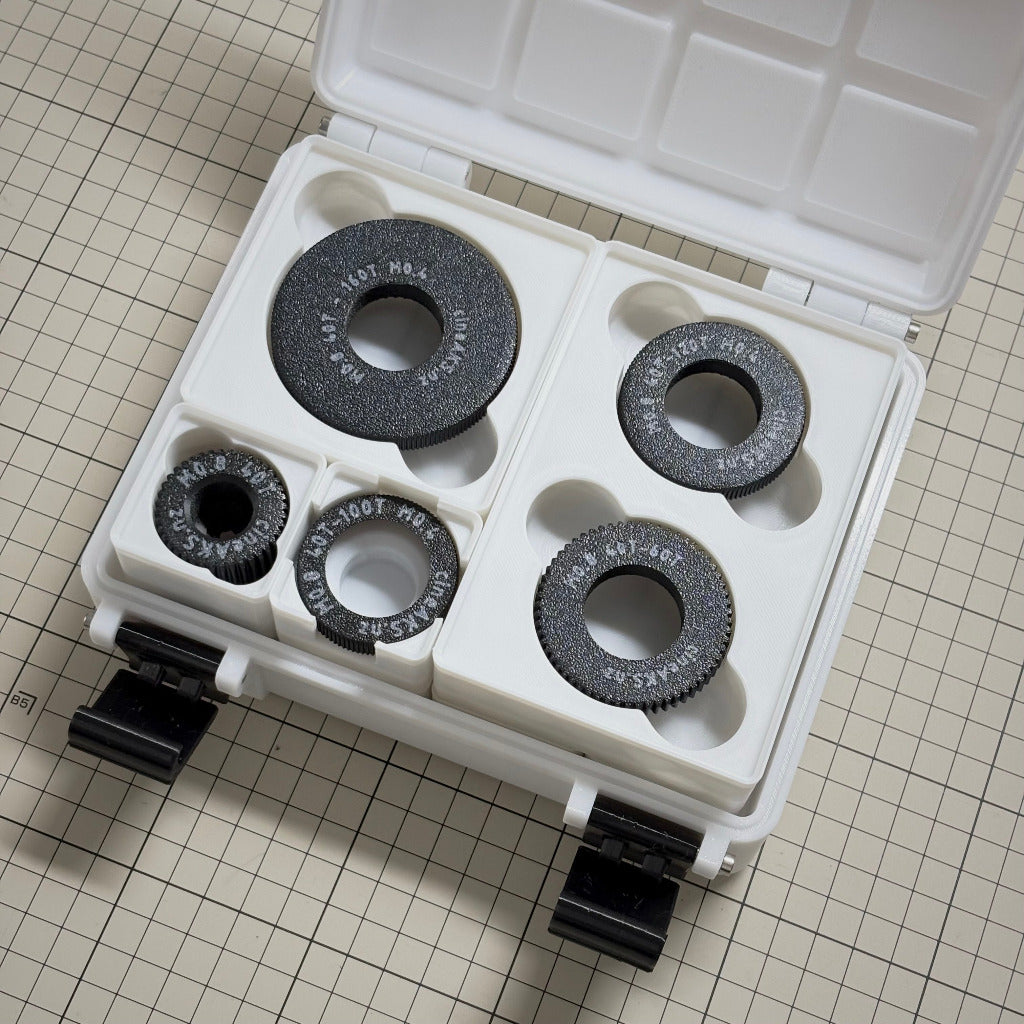

Gridfinity storage

The Gridfinity version of the Starter Kit includes:

• 1 × 2×3×4U bin for 1.5×-size gears, holding 2 gears
• 3 × 2×2×4U bins for 2×-size gears, holding 1 gear each
• 1 × 1×1×8U bin for the 1×-size 25mm gear
• 1 × 1×1×4U bin for the 1.25×-size gear
• 3x 1x1x4U bin for the 1x gears, holding 1 gear each

9 Gridfinity bins total.

The complete version additionally includes:

• 1 × 3×4×8U Gridfinity case

Offset Kit - 6 gears

The Offset Kit is a dedicated collection of direct-fit offset and extra-offset cForce gears.

These configurations provide additional options where lens diameter, motor position or camera-rig geometry requires more clearance between the lens and motor.

Gears included

• M0.8 60T extra-offset direct-fit
• M0.4 / 64p 120T extra-offset direct-fit
• M0.8 60T direct-fit offset
• M0.4 / 64p 120T direct-fit offset
• M0.5 96T direct-fit offset
• M0.6 80T direct-fit offset

6 gears total.

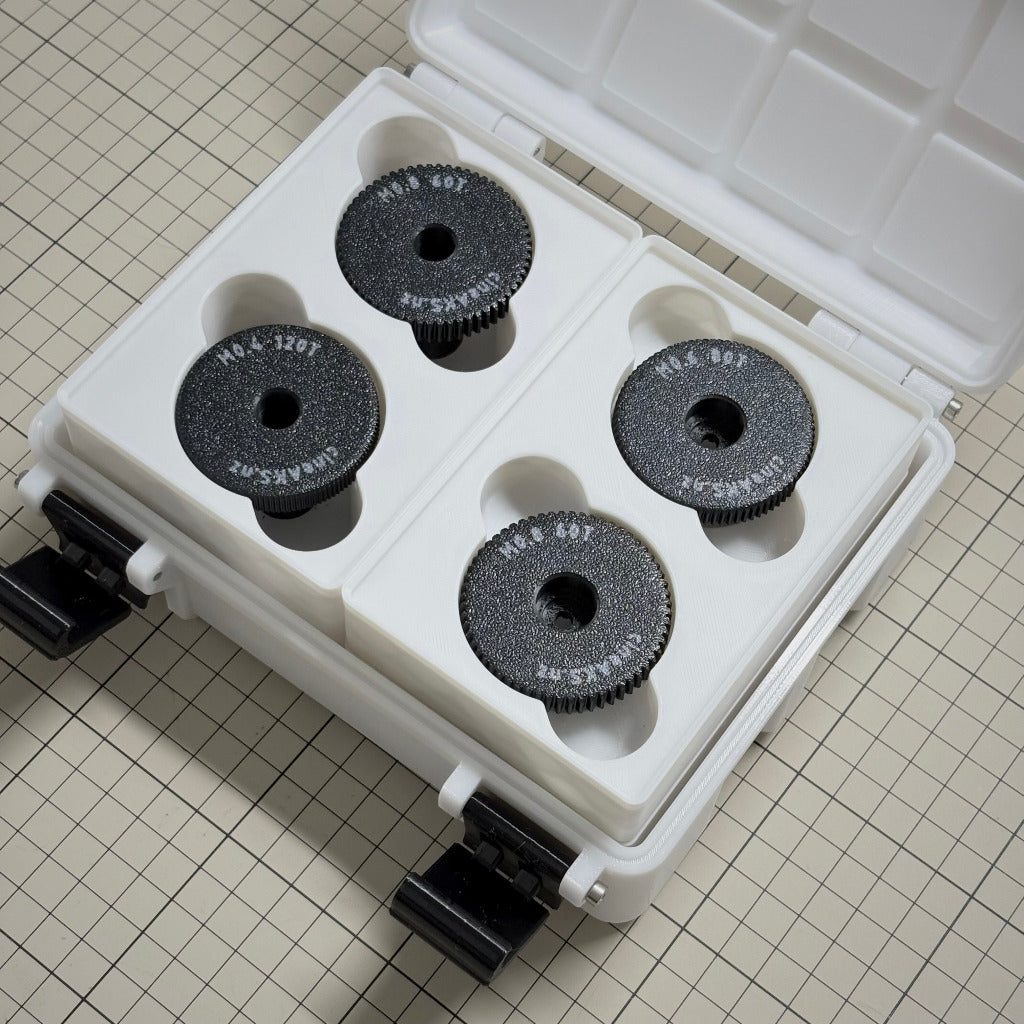

Gridfinity storage

The Gridfinity version of the Offset Kit includes:

• 1 × 2×3×8U bin for 1.5×-size deep gears, holding 2 gears
• 2 × 2×3×4U bins for 1.5×-size gears, holding 2 gears each

3 Gridfinity bins total.

The complete version additionally includes:

• 1 × 3×4×8U Gridfinity case

Master Collection - 16 gears

The Master Collection combines the Starter Kit and Offset Kit into one comprehensive Arri cForce gear collection.

With 16 gears covering the complete range of configurations included in the two kits, it provides a broad selection of M0.8, M0.6, M0.5 and M0.4 / 64p gearing, including direct-fit, push-on, offset, extra-offset and flush configurations.

The Master Collection is available at an additional discount compared with purchasing the Starter Kit and Offset Kit separately.

Gears included

The Master Collection contains:

• All 10 gears from the Starter Kit
• All 6 gears from the Offset Kit

16 gears total.

The only cineAKS cforce gear not included is the M0.8 40T direct-fit gear, as the Arri one is supplied as standard with most compatible motors.

If you require an additional M0.8 40T direct-fit gear, it is available separately.

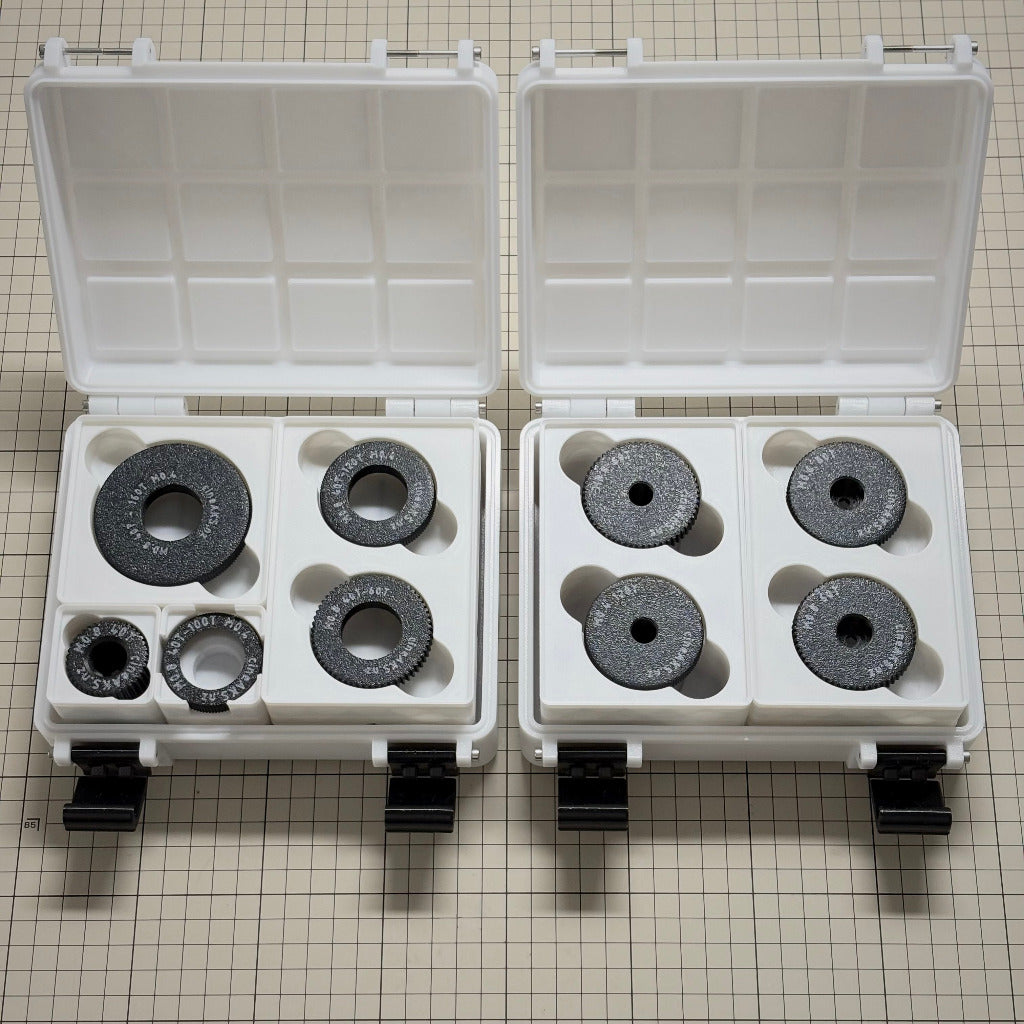

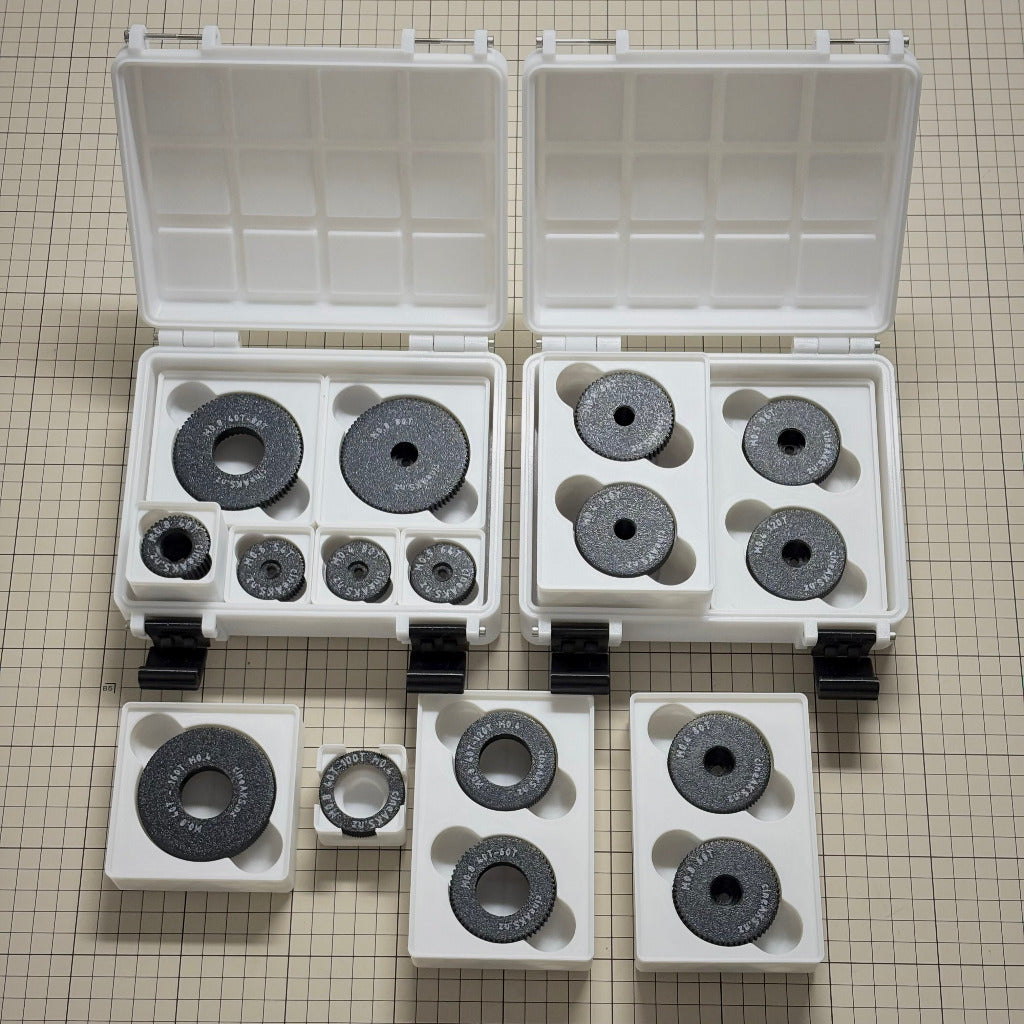

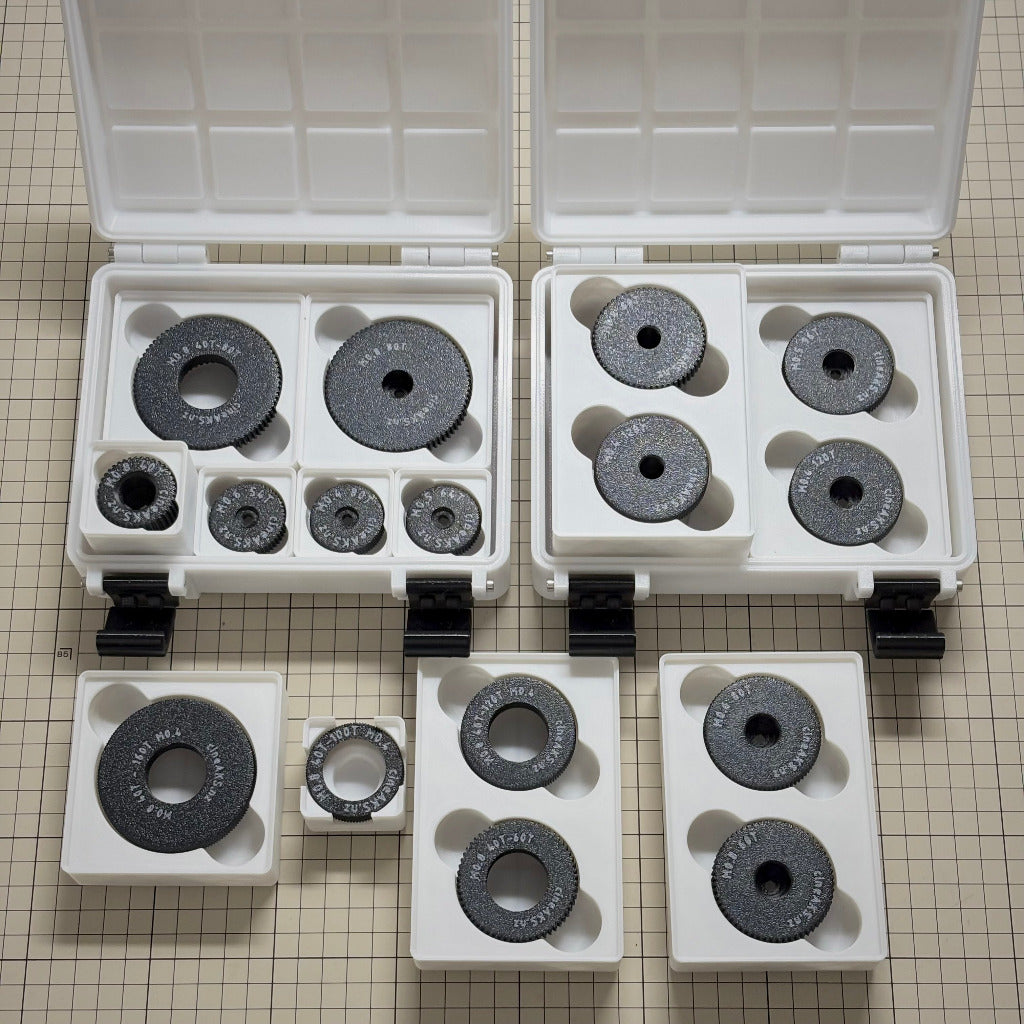

Gridfinity storage

The Gridfinity version of the Master Collection includes the storage for both kits:

• 3 × 2×3×4U bin for 1.5×-size gears, holding 2 gears
• 3 × 2×2×4U bins for 2×-size gears, holding 1 gear each
• 1 × 1×1×8U bin for the 1×-size 25mm gear
• 1 × 1×1×4U bin for the 1.25×-size gear
• 1 × 2×3×8U bin for 1.5×-size deep gears, holding 2 gears
• 3x 1x1x4U bin for the 1x gears, holding 1 gear each

12 Gridfinity bins total.

The complete version additionally includes:

• 2 × 3×4×8U Gridfinity cases

Choose your storage

All three cForce cog collections are available in three storage configurations.

Gears only

The complete selected gear collection without Gridfinity storage.

Gears + Gridfinity bins

Includes the purpose-selected Gridfinity bins for the chosen kit.

Gridfinity is an open-source, modular storage system built around a standardised grid, allowing compatible bins and storage components to be mixed, matched and stacked.

cineAKS cforce storage uses the standard 42mm XY grid and 7mm height units, making it straightforward to integrate the bins into an existing Gridfinity storage system.

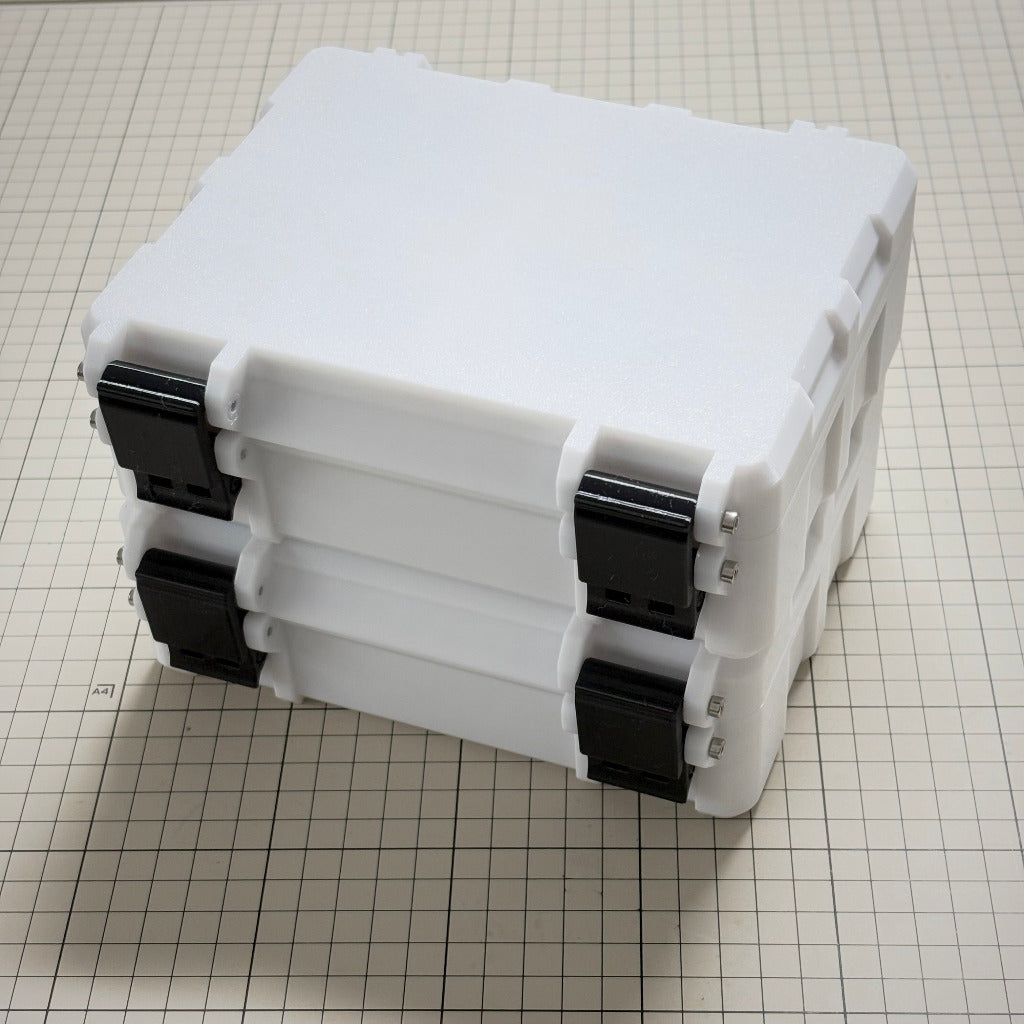

Gears + Gridfinity bins + case

Includes the complete gear collection, its corresponding Gridfinity bins and a 3×4×8U Gridfinity case.

The Master Collection includes two cases, one for the Starter Kit storage and one for the Offset Kit storage (or for however you prefer to arrange them!).

Built for professional lens control

The cineAKS cforce range is designed around the practical requirements of professional cinema camera and lens-control setups.

The collection includes multiple gear pitches and configurations for ARRI, Panavision, Canon and Fujinon applications, including:

• M0.8 lens gearing
• M0.6 lens gearing
• M0.5 lens gearing
• M0.4 / 64p Panavision-compatible gearing
• Direct-fit gears
• Push-on gears
• Offset gears
• Extra-offset gears
• Flush push-on gearing

This allows the appropriate gear to be selected for different lens pitches, gear diameters, motor positions and rig configurations.

Individually finished and inspected

Each gear is individually finished and inspected.

Kits require additional preparation because the individual gears, bins and cases need to be assembled into the selected collection and checked before dispatch.

Please allow a few days for kit manufacture and preparation before dispatch.

This is a small-batch product made and checked individually rather than a pre-packed mass-produced kit.

Replacement screws

Replacement screws for cforce gears and kits are available separately.

All storage bins are designed so you can keep your cineAKS screws in the gears, to speed up gear changes.
